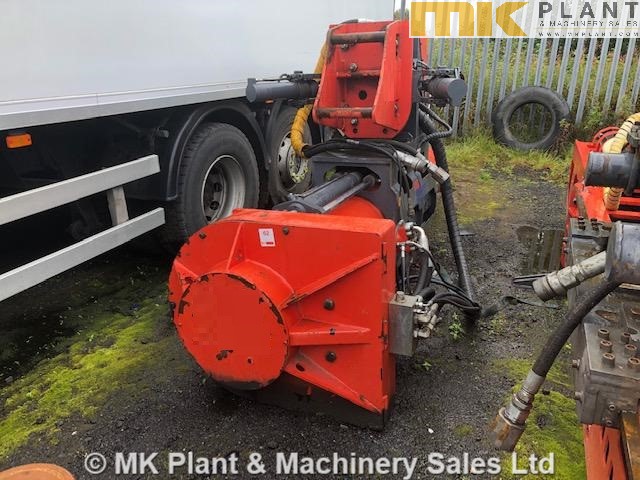

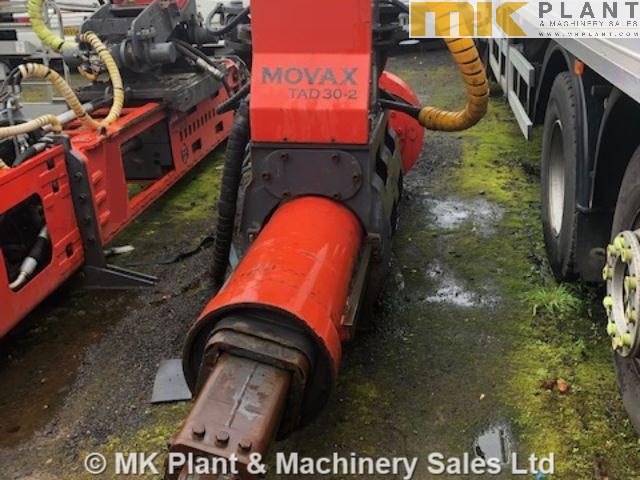

’16 Movax TAD 30 – 2 Excavator Mounted Rotary Auger Piling Rig

Excavator-mounted auger drive attachment for cast in-situ piling and other earth drilling work. Suitable for 25 – 35t excavators.

Hydraulically operated telescopic Kelly-Bar with two extensions

Key specification:

Return pressure, max bar 5
Oil flow rate litre per min = 75 – 250
Max return pressure = 5bar
Hole depth = 9m
Hole diameter = 400mm – 1000mm (depending on soil conditions)
Drill speed range = 11 – 74rpm
Side tilt angle = +/- 30 degree
Torque = 30000Nm
Auger pressing force = 15,000N
Auger pulling force = 30,000N
